特点
| 应用
|
特点

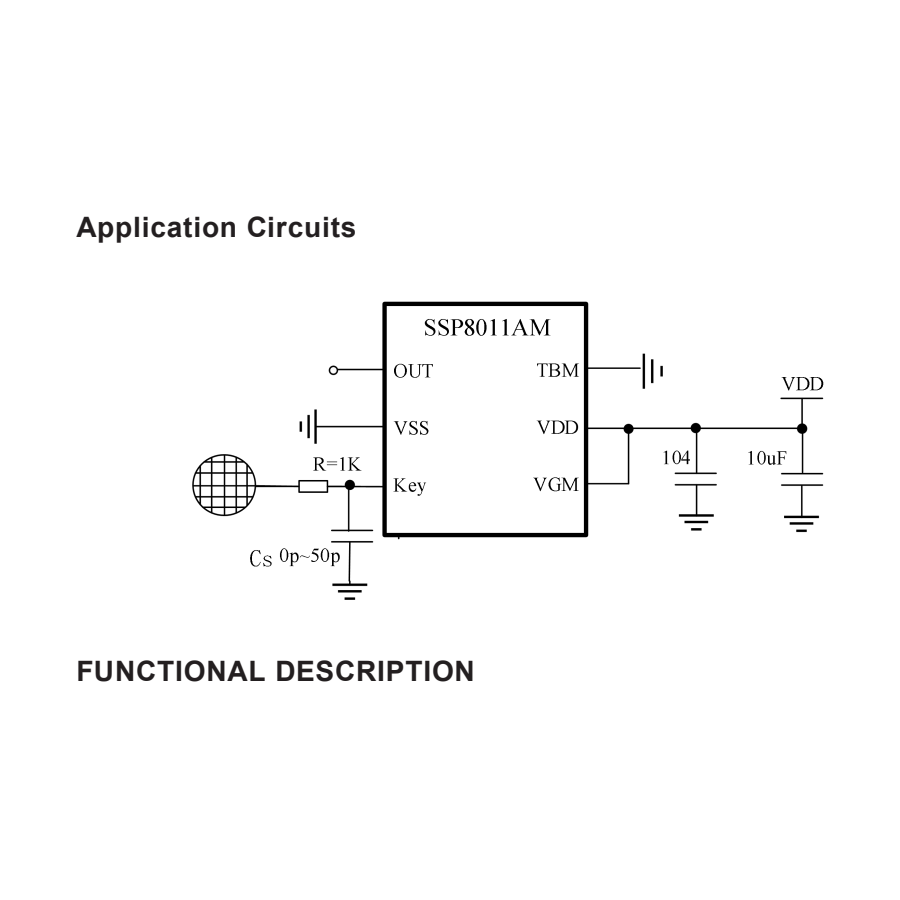

| 应用
|
绝对最大额定值
| 部件号 | 封装 | 包装方式 | 每袋/卷设备 |
| SSP8011AM | SOT23-6L | 卷轴 | 3000 件 |
绝对最大额定值
| 序号 | 名称 | In/Out | Pin Description |
| 1 | 出局 | O | CMOS output pin |
| 2 | VSS | P | 地面 |
| 3 | Key | I/O | Input sensor port |
| 4 | VGM | I-PL | VGM connect to VDD, OUT is active low output VGM connect to VSS, OUT is active high output |
| 5 | VDD | P | Power input pin |
| 6 | TBM | I-PL | OUT pin mode selection TBM connect to VDD, OUT is Toggle mode TBM connect to VSS, OUT is Synchronous mode |
绝对最大额定值
| 参数 | 符号 | 价值 | 单位 |
| 电源电压 | V DD | V -0.3 ~ V +5.5 SS SS | V |
| 输入电压 | V IN | V -0.3 ~ V +0.3 SS DD | V |
| CS Induced capacitance range | Cs | 0~50 | pF |
| 工作温度 | Tamb | -20 ~ +85 | ℃ |
| 储存温度 | Tstg | -40 ~ +125 | ℃ |
电气特性
| 参数 | 符号 | 测试条件 | Min. | 类型 | 最大 | 单位 | |
| VDD | 条件 | ||||||
| 工作电压 | V DD | – | – | 2.3 | 3.0 | 5.5 | V |
| 电源电流 | I DD | 3V, Low power mode | – | 2.5 | 5.0 | μA | |
| 3V, Fast mode | – | 5.0 | 10.0 | μA | |||
| Enter Low Power mode after no activity time | Tr | VDD =3.0V | – | 12 | – | S | |
| Initialization Time of Power On | Tini | VDD =3.0V | – | 400 | – | 毫秒 | |
| Output Response Time | Tre | 3V, Low power mode | – | 160 | – | 毫秒 | |
| 3V, Fast mode | – | 70 | – | 毫秒 | |||
| Input Low Voltage Threshold | V IL | – | 0 | – | 0.2 | V | |
| Input High Voltage Threshold | V IH | – | 0.8 | – | 1.0 | V | |
| Output Current of Source | I OH | 3V | V =2.7V OH | – | 0.4 | – | 毫安 |
| 5V | V =4.5V OH | – | 1.1 | – | 毫安 | ||
| Output Current of Sink | I OL | 3V | V =0.3V OL | – | -19 | – | 毫安 |
| 5V | V =0.5V OL | – | -42 | – | 毫安 | ||
| LVR Voltage | Vrst | – | 1.5 | – | V |
