통신 및 인터페이스 회로

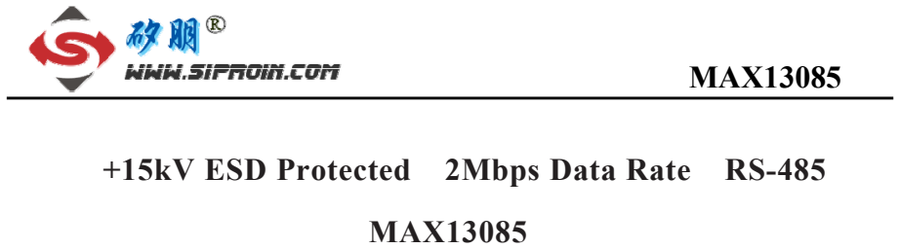

The MAX13085 is a half-duplex high speed transceiver for RS-485 and RS422 communication. IC contains one driver and one receiver. The MAX13085 has a fail-safe circuit. It has a slew-rate-limited driver that reduces EMI and reflection due to improperly matched terminal cables, and achieves error-free data transmission of up to 2Mbps. Each driver output and receiver input is protected against ±15kV electrostatic discharge (HBM) (ESD)shocks. The MAX13085 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus. Mainly used in RS-485/RS-422 communication system.

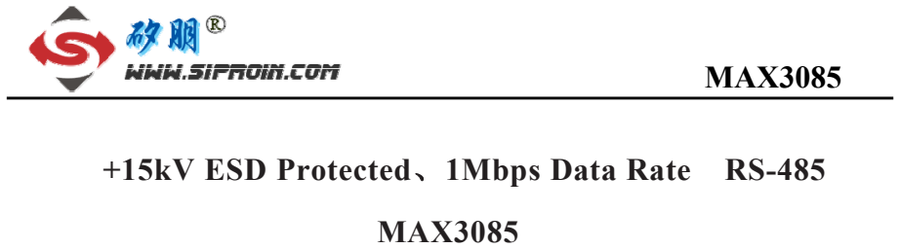

The MAX3085 is a half-duplex high speed transceiver for RS-485 and RS422 communication. IC contains one driver and one receiver. The MAX3085 has a fail-safe circuit, ensure logical high level of receiver output when receiver input is open or short. It can achieve error-free data transmission of up to 500kbps. The MAX3085 receiver has 1/8 unit load input impedance, allows up to 256 devices can be attached to the bus.
