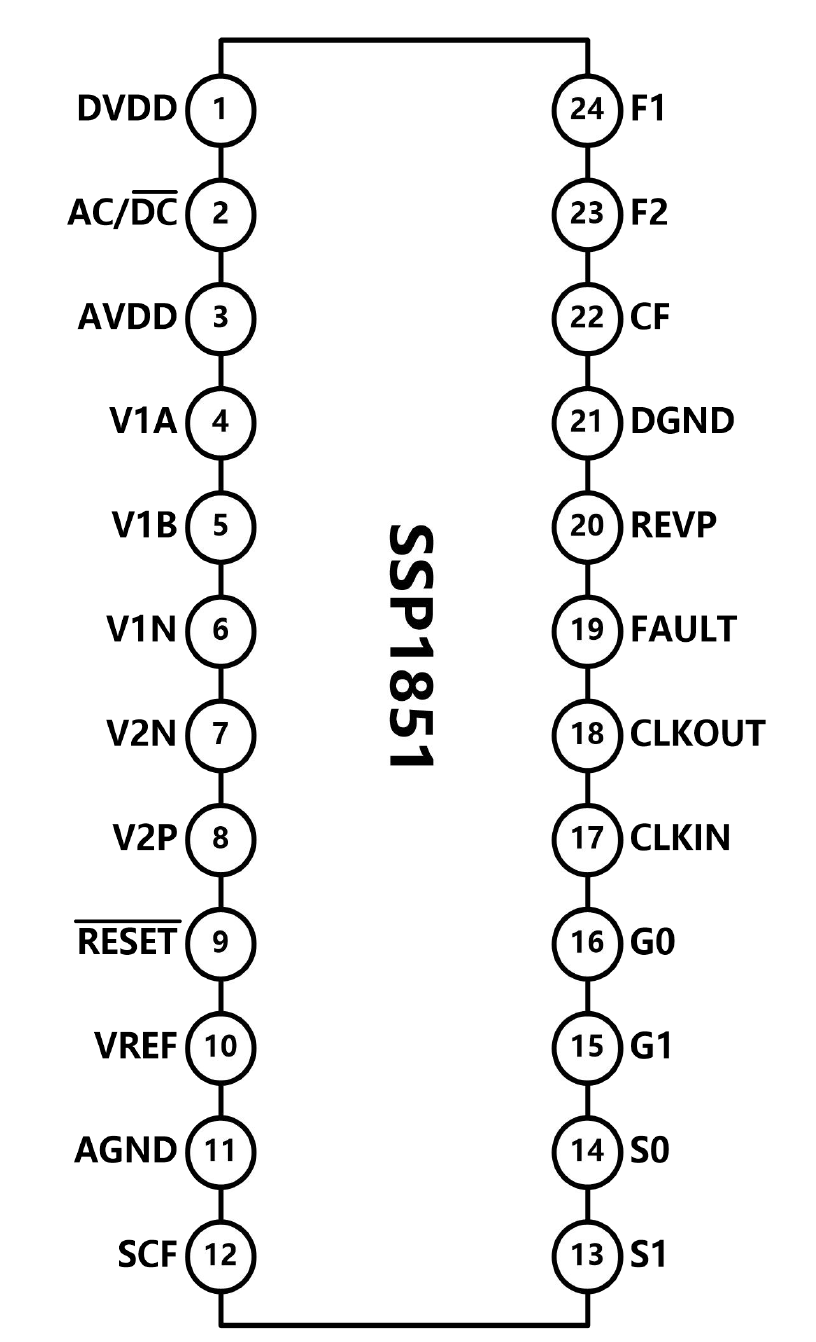

Absolute Maximum Ratings
Parameter name | Symbolic | Value | Unit |
Chip Supply Voltage | VDD | -0.3~+7 | V |
Analogue Signal Inputs | V1A,V1B,V1N,V2N,V2P Voltage to GND | -6~+6 | V |
Reference Input Voltage | -0.3~VDD+0.3 | V | |
Digital Input Voltage | -0.3~VDD+0.3 | V | |
Digital Output Voltages | -0.3~VDD+0.3 | V | |
Operating Temperature Range | T | -40~+85 | ℃ |
Storage Temperature Range | Tstg | -40~+85 | ℃ |
Conjugate Temperature | Tj | +150 | ℃ |
SSOP24 Package Power Dissipation | Pd | 450 | mW |
Thermal Resistance | 112 | ℃/W | |
Vapour Phase Welding(60S) | +215 | ℃ | |
Infrared soldering(15S) | +220 | ℃ |
Note: Unless otherwise specified, TA = 25℃.
Electrical Characteristics
Measurement items | symbolic | Measurement Conditions | Min | Typical | Max | Unit |
Chip Operating Voltage | VDD | 4.75 | 5 | 5.25 | V | |
Chip Working Current | IDD | 3 | 4 | mA | ||
Measurement error for channel 1 | Channel 2 is full-scale input (±600mV), +25℃, G=1, dynamic range 500:1 | 0.1 | % | |||
Channel 2 is full-scale input (±660mV), +25℃, G=16, dynamic range 500:1 | 0.1 | % | ||||
Phase Error Between Two Channels | Line frequency 45-65Hz,, AC/DC = 0 and AC/DC = 1, V1 overrun 37° (PF = 0.8 capacitive) | ±0.1 | % | |||
Line frequency 45-65Hz, AC/DC=0 and AC/DC=1, V1 lag 60° (PF=0.5 inductive) | ±0.1 | % | ||||
AC power supply suppresses output frequency variations(CF) | AC/DC=1, S0=S1=1, G0=G1=0, V1=V2=100mVrms, 50Hz, VDD plus 200 mV rms, 100Hz ripple | 0.2 | % | |||
DC power supply suppresses output frequency variations(CF) | AC/DC=1,S0=S1=1,G0=G1=0,V1=V2=100mVrms,VDD =5V±250mV | ±0.3 | % | |||
FAULT DETECTION | ||||||
Fault Detection Threshold | V1A or V1B Active | 12.5 | % | |||
Fault Detection Input Swap Threshold | V1A or V1B Active | 14 | % | |||
Accuracy Fault Mode Operation | V1A Active,V1B=AGND,Dynamic Range 500 to 1 | 0.1 | % | |||
V1B Active,V1B=AGND,Dynamic Range 500 to 1 | 0.1 | % | ||||
Accuracy Fault Mode Operation | 3 | S | ||||
Analogue Inputs | ||||||
Max Signal Level | V1A,VIB,V1N,V2N and V2P to GND | ±1 | V | |||
DC Input Resistance | CLKOSC=3.58MHz | 390 | kΩ | |||
-3dB bandwidth | CLKOSC/256,CLKOSC=3.58MHz | 14 | KHZ | |||
ADC misalignment error | ±16 | mV | ||||
Gain error | External reference source 2.5V, G=1 V1=660mV dc, V2=660mV dc | ±5 | ±8 | % | ||
Gain matching error | External reference source 2.5V | ±0.2 | % | |||
Reference Input | ||||||
REFIN/OUT Input Voltage Range | 2.3 | 2.5 | 2.7 | V | ||
Input Impedance | 3.2 | kΩ | ||||
Input capacitance | 10 | pF | ||||
On-chip reference source | ||||||
Reference Voltage Error | Nominal value 2.5V | ±200 | mV | |||
Temperature coefficient | Nominal value 2.5V | ±30 | ppm/℃ | |||
Clock Input | ||||||
Input Clock Frequency | All indicators CLKOSC is 3.58MHz | 1 | 4 | MHZ | ||
Logical input SCF,S0,S1,AC/DC,RESET(______________),G0和G1 | ||||||
Input High Level | VINH | VDD=5V±5% | 2.4 | |||
Input Low Level | VINL | VDD=5V±5% | 0.8 | |||
Input Current | VIN=0V至VDD | 0.01 | ±3 | μA | ||
Input capacitance | 10 | pF | ||||
Logic output F1,F2 | ||||||
Output High Level | VOH | ISOURCE=10mA,VDD=5V | 4.5 | V | ||
Output Low Level | VOL | ISINK=10mA,VDD=5V | 0.5 | V | ||
CF,REVP | ||||||
Output High Level | VOH | ISOURCE=10mA,VDD=5V | 4 | V | ||
Output Low Level | VOL | ISINK=10mA,VDD=5V | 0.5 | V |
Note: TA = 25℃ unless otherwise specified.
All voltage values use the GND terminal potential as a reference point.
VDD= 5V±5%, GND=0V, using on-chip reference source, CLKOSC=3.58MHz.

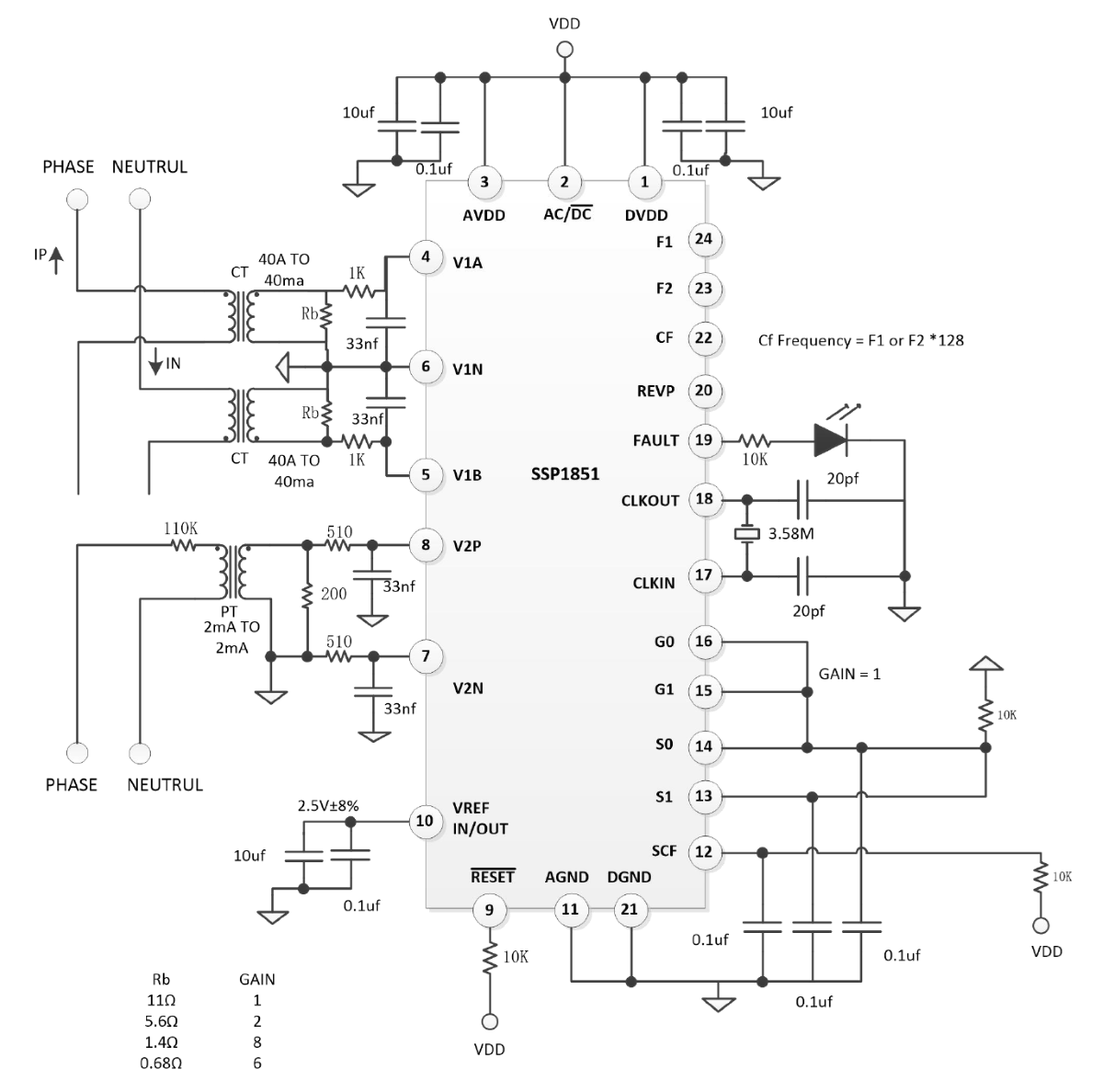

Order Specification
product model | package | manner of packing | Minimum packing quantity |
SSP1851 | SSOP24 | Tube | 60PCS |
