Density
Fast SPI interface with 8-bit data width addressing
Operation voltage
Data protection
Power consumption

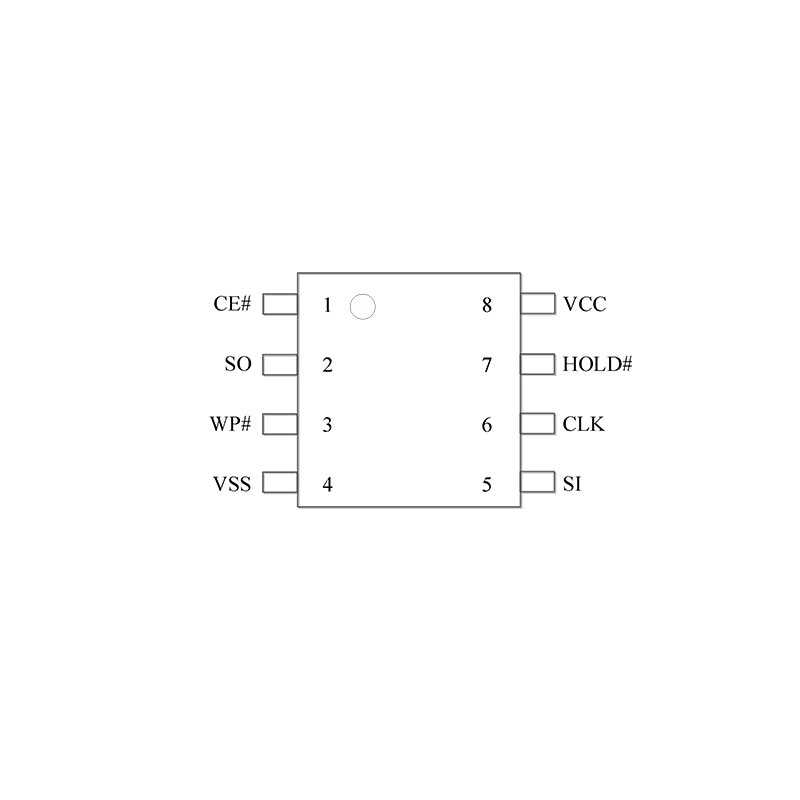

Package
| Symbol | Parameter | Test Conditions | Value | Unit |
| VCC | Power supply voltage | -0.5~4 | V | |
| VIN | Any pin voltage | -0.5~(VCC+0.5) | V | |
| IOUT | Each pin output current | ±20 | mA | |
| TBIAS | Temperature under bias pressure | Industrial grade | -40~125 | ℃ |
| Tstg | Storage temperature | -55~150 | ℃ | |
| Hmax_write | Maximum magnetic field during writing | Write | 4,000 | A/m |
|
Hmax_read | Maximum magnetic field during reading or standby mode | Reading or standby |
12,000 |
A/m |
|
Hmax_poweroff | Maximum magnetic field during power off |
Power off |
40,000 |
A/m |
| Symbol | Parameter | Min | Max | Unit |
| VCC | Power supply voltage | 2.7 | 3.6 | V |
| TA | Temperature (industrial) | -40 | 125 | ℃ |
| Symbol | Parameter | Test Conditions | Min | Typ. | Max | Unit | |
|
|ILI| |
Input leakage current | 0≤ CE# ＜VCC | – | – | 140 | μA | |
| CE# = VCC | – | – | 1 | μA | |||
| WP#, HOLD#, CLK, SI = 0V~VCC | – | – | 1 | μA | |||
| |ILO| | Output leakage current | SO = 0V~VCC | – | – | 1 | μA | |
| ISLP | Sleep current | CE# = VCC
All inputs VSS or VCC | – | 10 | 145 | μA | |
| ISBY | Standby current | CLK = SI = CE# = VCC | – | 100 | 5600 | μA | |
|
ICC |
Operating current |
SPI Write | CLK = 1MHz | – | 9 | 16 | mA |
| CLK = 40MHz | – | 11 | 18 | mA | |||
| CLK = 54MHz | – | 12 | 19 | mA | |||
|
SPI Read | CLK = 1MHz | – | 5 | 13 | mA | ||
| CLK = 40MHz | – | 7 | 15 | mA | |||
| CLK = 54MHz | – | 8 | 16 | mA | |||
| VIL | Input low level | VCC = 2.7V~3.6V | -0.3 | – | 0.8 | V | |
| VIH | Input high level | VCC = 2.7V~3.6V | VCC-0.4 | – | VCC+0.3 | V | |
| VOL | Output low level | IOL = 3.1mA | – | – | 0.2VCC | V | |
| VOH | Output high level | IOH = -3.1mA | 0.8VCC | – | – | V | |
| Part No | Density | Operating voltage range | Package | Devices per bag/reel | Maximum Program/Erase Cycles | Operating temperature | Data retention |
| PM002MNEB | 2Mbit | 2.7V~3.6V | SOP8 | 2500pcs/reel | 1E10 | -40℃~125℃ | ≥10years@105℃ |
| PM002MNIB | 2500pcs/reel | -40℃~85℃ | ≥10years@85℃ |
